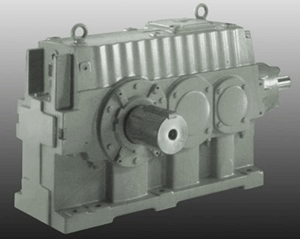

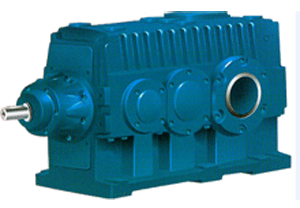

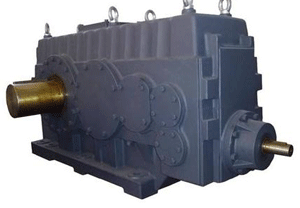

MR right-angle heavy-duty industrial gearbox



MR right-angle heavy-duty industrial gearbox/gear speed reducer hollow shaft output


MR right-angle heavy-duty industrial gearbox/gear speed reducer solid shaft output


MR right-angle heavy-duty helical-bevel industrial gearbox/gear speed reducer


The gearboxes can be supplied as motor gearbox units assembled on baseplates for convenience. Electromagnetic brakes, back stops, clutches, couplings and other mechanical devices can be incorporated in the design to give a complete drive unit.
- Structures: horizontal mounting, vertical mounting, and outputs can be solid output shaft, hollow output shaft, also could be flange-mounted;
- Overall dimensions imitate SEW-type, and there is almost no difference for carrying capacity between them when the same size;
- Modular design enable standardization of many basic components, interchangeability improved and quality guaranteed;
- Sound-absorbing and large surface of housing adopted to reduce noise, and big fan and new-type fan cover help to reduce temperature
- Gears and gear shafts made of high-quality low-carbon alloy steel 20CrMnTi, output shaft made of high-quality low-carbon alloy steel 40Cr, the gearbox housing made of high-strength casting iron HT250, may also adopt better material as requested;
- High efficiency up to 98%per stage, low noise <70-80dB, and temperature rise <40-50, and high precision grade up to 6 or better of ISO1328;
- Gears and gear shafts through carburizing and quenching then advanced fine profile grinding process to improve stability and transmit power more efficiently, gearbox housing through aging treatment then annealing to relieve stress twice, therefore the bearing capacity very high;
- Best China bearings used on products, may apply other bearings like SKF, NSK and FAG, and double-lip oil seal make sure no oil leak;
- May custom different models according to clients' requirement.
- Every gearbox 100 percent tested prior to delivery;


MP parallel-shaft heavy-duty gearbox for palm kernel oil expeller machine


MR helical-bevel heavy-duty SEW-type gearbox for coal mine conveyor


MR heavy-duty helical-bevel gear speed reducer for ladle transfer car
