Jintaixin gearbox pool-now online available.

A detailed list of Jintaixin's available gearboxes is now ready for download.Please click to DOWNLOAD.The list will be updated frequently.

PRODUCT CENTER
B right-angle helical-bevel gearbox



B right-angle helical-bevel gearbox/gear speed reducer solid shaft output



B right-angle helical-bevel gearbox/gear speed reducer hollow shaft output



B right-angle helical-bevel industrial gearbox/gear speed reducer with K series

-The gearboxes can be supplied as motor gearbox units assembled on baseplates for convenience. Electromagnetic brakes, back stops, clutches, couplings and other mechanical devices can be incorporated in the design to give a complete drive unit.

- Structures: horizontal mounting, vertical mounting, and outputs can realize solid output shaft, hollow output shaft, hollow shaft with shrink disc, solid shaft with involute spline, and solid shaft with flange;

- Modular design enable standardization of many basic components, interchangeability improved and quality guaranteed;

- Sound-absorbing and large surface of housing adopted to reduce noise, and big fan and new-type fan cover help to reduce temperature

- Gears and gear shafts made of high-quality low-carbon alloy steel 20CrMnTi, output shaft made of high-quality low-carbon alloy steel 40Cr, the gearbox housing made of high-strength casting iron HT250, may also adopt better material as requested;

- High efficiency up to 98%per stage, low noise <70-80dB, and temperature rise <40-50, and high precision grade up to 6 or better of ISO1328;

- Gears and gear shafts through carburizing and quenching then advanced fine profile grinding process to improve stability and transmit power more efficiently, gearbox housing through aging treatment then annealing to relieve stress twice, therefore the bearing capacity very high;

- Best China bearings used on products, may apply other bearings like SKF, NSK and FAG, and double-lip oil seal make sure no oil leak;

- May custom different models according to clients' requirement.

- Every gearbox 100 percent tested prior to delivery;

applications

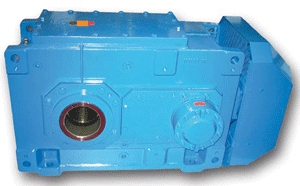

H industrial helical gearbox for steel magnetic separator



H industrial helical gearbox for palm kernel oil expeller machine



B industrial helical gear speed reducer for buried scraper conveyor



H helical gearbox for rubber mill calender
